Product Details
＋
- Material: Carbon Steel
- Tip Size: 0.090" (2.25mm)
- Type of Cut: Shear
- Cutting Capacity: 0.025" max (0.63mm max)
- Over All Length: 6" (150mm)
- Body Width: 0.42" (10.5mm)
- Body Height: 0.25" (6.25mm)

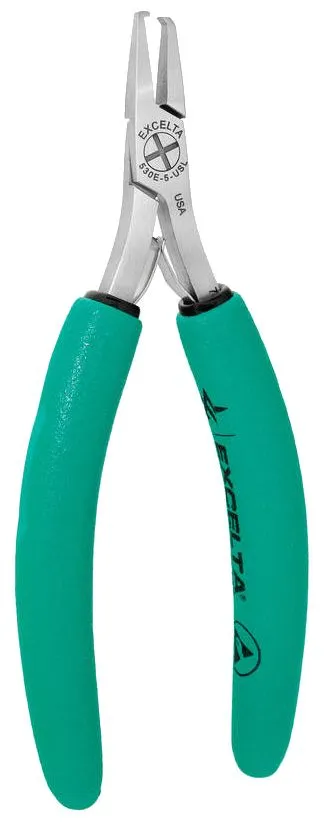

The 530E-5-USL five star 6" narrow anti-shock shear cutter reduces shock on delicate components and solder connections. The "Stand-Off" keeps the cutting blade from cutting into the solder connections. The tip width is 0.090". It's recommened cutting capacity 22 AWG (0.025" diameter.) Standard cut length is 0.040". The grips are ESD Safe (1010 ohms/sq).
**Item is a custom tool, and is made to order.
